A primary key, which is a foreign key, should be reported as 1:1 relation

Simon_Schick · May 22, 2025, 10:50am

I am not that familiar with DBML, so I’ll start from where I enter the picture - the SQL import for PostgreSQL:

CREATE TABLE public.routines (
    id uuid DEFAULT gen_random_uuid() NOT NULL
);

CREATE TABLE public.routine_task_templates (
    routine_id uuid NOT NULL
);

ALTER TABLE ONLY public.routine_task_templates
    ADD CONSTRAINT routine_task_templates_routine_id_fkey FOREIGN KEY (routine_id) REFERENCES public.routines(id) ON DELETE CASCADE;

Importing the given schema above generates this definition:

Table "routine_task_templates" {
  "routine_id" uuid [pk, not null]
}

Table "routines" {
  "id" uuid [pk, not null, default: `gen_random_uuid()`]
}

Ref "routine_task_templates_routine_id_fkey":"routines"."id" < "routine_task_templates"."routine_id" [delete: cascade]

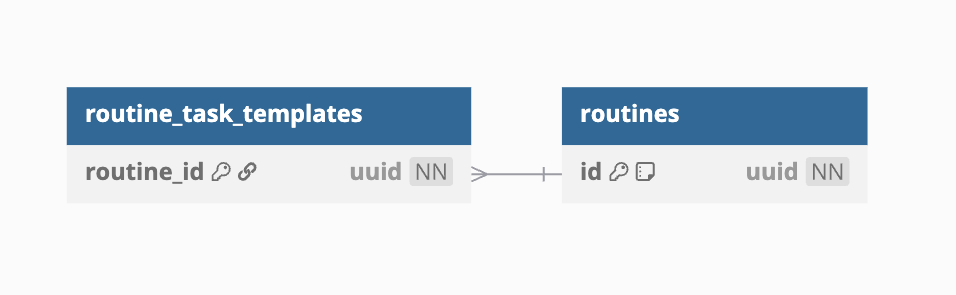

I would expect the system to report the relation as 1:1 relation, but instead I see the system reporting it as a 1:n relation:
